ANT-2400-H MMDS Slot Omnidirectional Antenna
Features
Frequency Range:2400-2483MHz
Special customized frequency by operator’sdetail requirements.
Optional gain customized by operator’s detailrequirements.
High Gain and long range coverage.

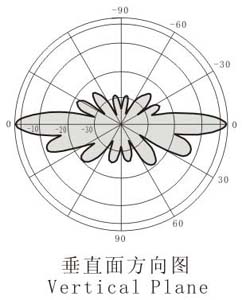

Polarization Radiation Diagram
Technical Specifications
Model | TY-7316(H) |
Frequency Range | 2400-2483GHz |
Bandwidth | 83(MHz) |
Input Impedance | 50(Ω) |
VSWR | <1.5 |
Gain | 6dBi |
(3dB)HPBW | 4°E-plane |
F/B Ratio | >12(dB) |
Maximum Power | 10(W) |
Connector Type | N-K |
Polarization | Horizontal Polarization |
Lighting Protection | Direct Ground |
Working temperature | -40℃~60℃ |
Wind Velocity | 200(km/h) |
Length | 1600(mm) |
Weight | 7(Kg) |
